For Utes, Trucks. White Powder Coated.
1400 mm x 505 mm x 755 mm total height incl. mounting feet

White Steel Ute Tool Box with 5 Drawers

1400 mm × 505 mm × 705 mm
Heavy-Duty Steel Construction for Trades & Fleet Vehicles

1.5 mm Steel Plate Gas Strut Assisted Water & Dust Resistant

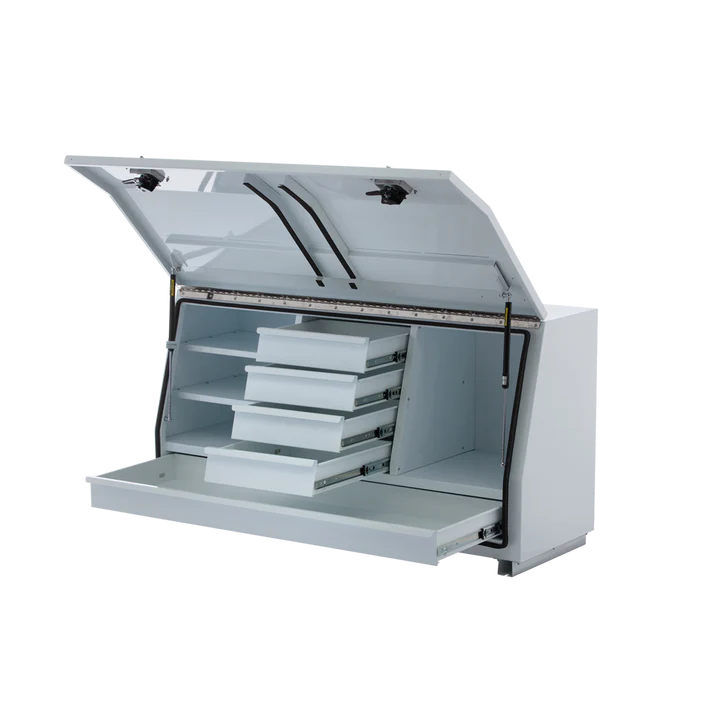

White Steel Ute Tool Box 1400mm

Product Description

This White Steel Tool Box enhances the storage capacity of any ute, truck, or car. Built from 1.5 mm heavy-duty steel plate, it offers superior strength, durability, and security. The lid uses a full-length concealed stainless steel piano hinge paired with strong gas struts that ensure smooth and effortless operation.

Heavy-duty stainless steel T-Locks — bolted instead of riveted — provide enhanced security and long-lasting performance. Each lock barrel includes a protective cover to keep grime and moisture out. The lid is internally braced to prevent warping, and drainage holes allow any water outside the seal line to escape.

Designed for easy installation, the 50 mm square mounting rails allow clearance over tray lips and create a stable mounting base. Fully welded seams and premium rubber seals ensure 100% water and dust resistance, even in demanding work environments.

Inspections are welcome, and keyed-alike options are available for multi-box orders upon request.

Specifications

Gas Strut Specifications

Model: 500 × 18 mm
Distance of Travel: 200 mm
Air Pressure: 350 N
Service Lifetime: 25,000 cycles

Gas Strut 500x18mm

Material & Build

Heavy-duty 1.5 mm steel plate with a durable UV-stabilised powder coat finish. Fully welded seams and rugged hardware ensure longevity and strength.

Toolbox Drawer & Shelf Dimensions

Section Width (mm) Depth (mm) Height (mm)
Top Drawer 400 305 90
2nd Drawer 400 340 90
3rd Drawer 400 370 90
4th Drawer 400 400 90
Bottom (Long) Drawer 1270 415 90
Left Compartment (2 Shelves) 495 333 / 465 Shelves 135 / 135 / 135
Right Compartment 430 333 / 465 490

All drawers rated up to 25 kg capacity.

Key Features

  • ✔ Heavy Duty 1.5 mm Steel Plate
  • ✔ Ideal for mining, agricultural industries, mobile service personnel & workshops
  • ✔ Heavy Duty Drawer Rails
  • ✔ 25 Kilogram Rated Shelves
  • ✔ 5 x Drawers
  • ✔ 2 x Shelves - Both Shelves are Removeable
  • ✔ Weather Resistant Rubber Seals
  • ✔ Fully Welded Seams
  • ✔ 50 mm Square Mounting Rails Along the Bottom of the Box
  • ✔ UV Stabilised Powder Coat Finish
  • ✔ Can Be Mounted On Trailers, Utes or Trucks
  • ✔ Strong Key-Lockable T-Locks
  • ✔ 4 x Keys, So You Have Spares
  • ✔ Full Length Concealed Piano Type Hinge
  • ✔ 2 x Heavy Duty Gas Struts

Includes

  • ✔ 1 x Steel Tool Box with Drawers 1400 mm x 505 mm x 705 mm

Size & Weight

Package Size (L x W x H): 1400 mm × 505 mm × 805 mm
Weight: 111 kgs

✔ Heavy Duty 1.5 mm Steel Plate
✔ Ideal for mining, agricultural industries, mobile service personnel & workshops
✔ Heavy Duty Drawer Rails
✔ 25 Kilogram Rated Shelves
✔ 5 x Drawers
✔ 2 x Shelves - Both Shelves are Removeable
✔ Weather Resistant Rubber Seals
✔ Fully Welded Seams
✔ 50 mm Square Mounting Rails Along the Bottom of the Box
✔ UV Stabilised Powder Coat Finish
✔ Can Be Mounted On Trailers, Utes or Trucks
✔ Strong Key-Lockable T-Locks
✔ 4 x Keys, So You Have Spares
✔ Full Length Concealed Piano Type Hinge
✔ 2 x Heavy Duty Gas Struts

Includes:
✔ 1 x Steel Tool Box with Drawers 1400 mm x 505 mm x 705 mm

Size & Weight
Package Size: (L x W x H): 1400 mm x 505 mm x 805 mm
Weight: 111 kgs.
